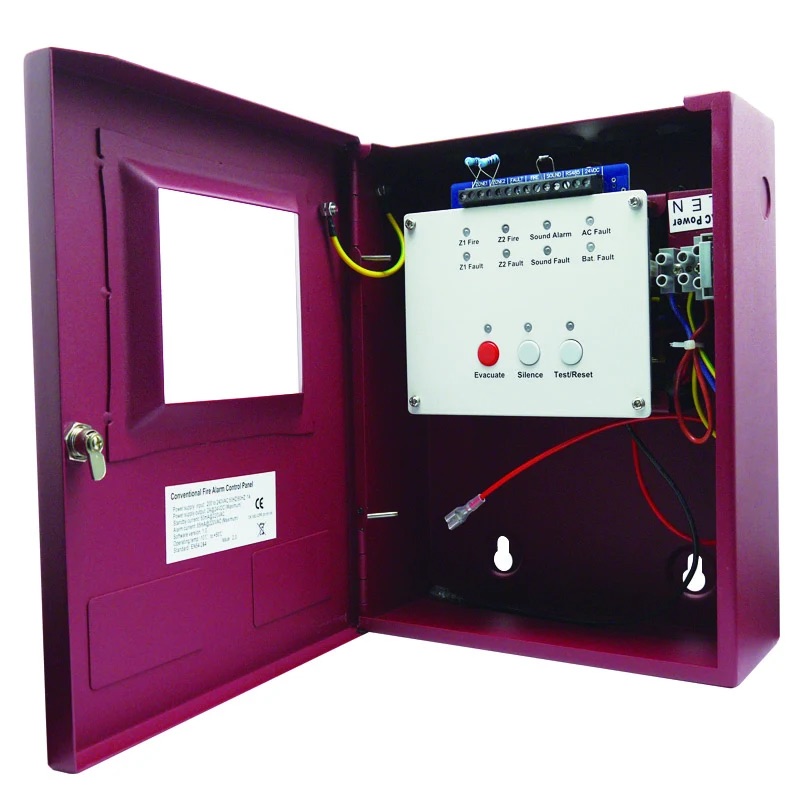

2 fire zone Mini conventional fire alarm control panel

•


Price : $98.00

• Model: CP-1002
• Shipping Weight: 3 kgs
• Units in Stock : 992
• Manufactured by: HST fire security equipment

 Ask a Question

DESCRIPTION

Small business fire security alarm system.

CP-1002 Mini size designed conventional fire alarm 2 zone panel is used for family hotel fire security, restaurant fire security, store or shop fire security alarm.

Automatic fire alarm system is a device that automatically detects, displays and sends out fire alarm when fire occurs to the protected object. It is widely used in modern factories, material warehouses, high-rise buildings, computing centers and other buildings, to ensure the safety of people's lives and property plays a huge role. The panel range is designed to meet the requirements of EN54 Parts 2 & 4. The panel can be used independently or connect by RS485.

Automatic fire alarm system is composed of trigger device, fire alarm device, fire alarm device, power supply and linkage device with other auxiliary control function.

FAQ:

Can I connect it with master fire controller?

Yes. It has RS485 interface to connect to master fire controller.

What type of fire detectors smoke heat detector etc. is it compatible with?

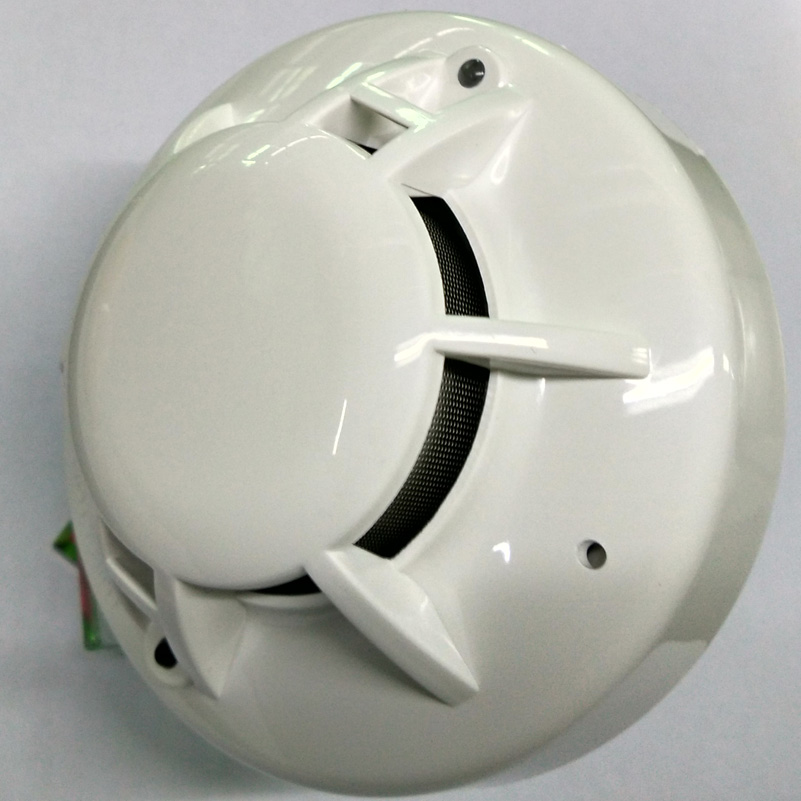

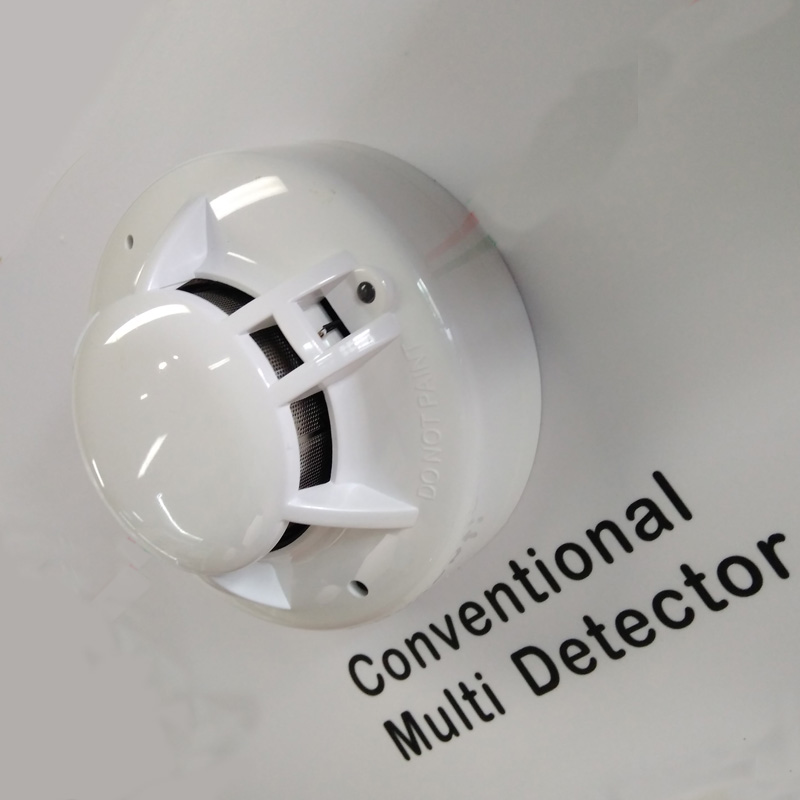

It is compatible with 2-wire conventional fire detectors.

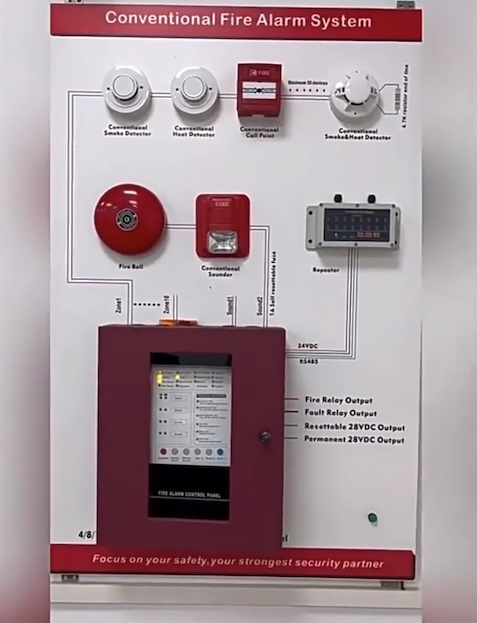

Conventional 2-zone multi-wire fire alarm controller, equipped with any 2-wire smoke, temperature, alarm button and alarm bell, sound and light. At the same time can be equipped with security alarm equipment.

More fire alarm systems with free technical support at fire alarm system

Description:

1. The Mini fire alarm control master panel and slave panel each has 2 zones and each zone can equip Max.30 detectors and call points.

2. It should be installed, commissioned and maintained by suitably qualified service personnel with reference to IEE regulations and any statutory requirements.

3. The 2 zones alarm panel has 1 alarm sound output zones (bell zones), which can equip max.16 sounders for total max. 1A/24V power supplied.

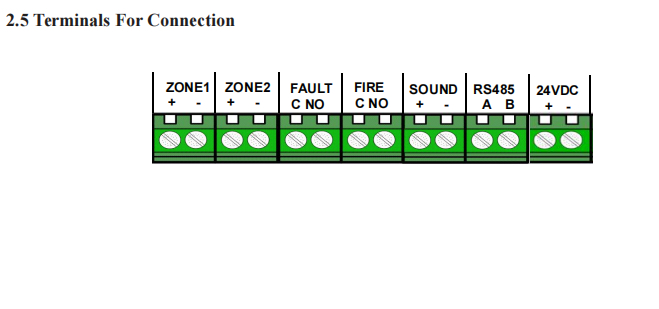

4. The panel (master or slaver) has 24V auxiliary power output supply 2A/24V with fire 1, fire 2 relay output and fault relay output.

5. Enclosure supports two 12V, 4Ah backup batteries.

6. It supports detector head removal and easy for repair or maintenance.

7. It has Test/reset, silence alarm and Evacuate button for easy panel operation.

8. It has indicators of zone1 alarm /fault, zone2 alarm /fault, Sound alarm, and sound fault LED. That clearly showed detectors and sound circuit staturs.

9. There is one master fire alarm control panel and it can work with Max.31 same slaver panel.

10. The master fire control panel will communicate slaver panel one by one and fault will be showed if no response is received.

11. Alarm and fault events of panel No. and zone No. will be showed one by one on Master fire control panel.

Specification:

1. System Power Supply: Primary AC 120VAC 50/60 Hz / 240VAC 50/60 Hz

Power supply rating 2 Amps @ 24VDC

Maximum Battery Charging Current 0.98 Amps @ 26VDC

Initiating Device Circuits 2 Zones Alarm Zone 2

Normal Initiating Operating Voltage 23VDC, Maximum 26VDC, regulated

2. Standby current: <50mA

3. Alarm current(not include the others): <150mA

4. Detector Voltage (VDC): 24V

5. Number of sensor zones: 2 zones

6. Max. number of detectors per zone: 30

7. Alarm Voltage: 24V

Short Circuit Initiating Current (per zone) 35mA Maximum

Maximum Initiating Resistance (per zone) 10 ohms

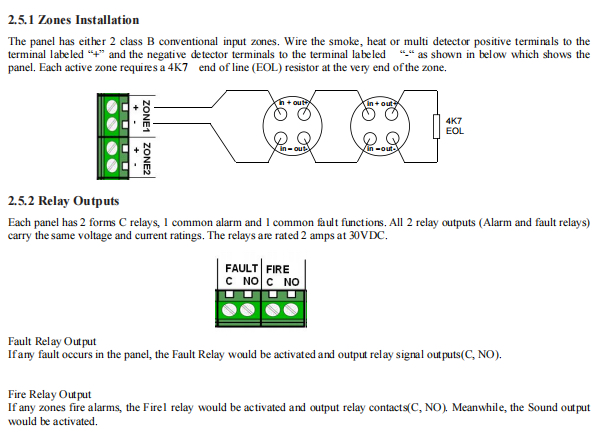

Initiating End-of-Line Resistor 4K7 ohms, 1/2W 5%

Standby Detector Current (per zone) 4mA maximum

Maximum Detector Count (per zone) 30 detectors

Initiating Cabling Type 18AWG Twisted Shielded pair (14 – 18 AWG)

Detector Base Impedance 430 ohms

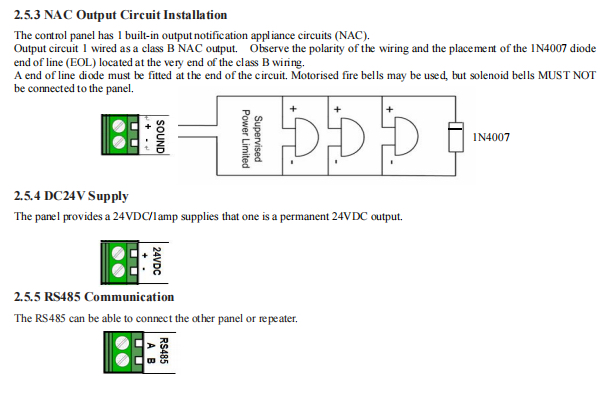

Notification Appliance Circuits 1 NACs, Special Application

Maximum NAC Current Rating 1 Amp maximum per circuit

NAC Operating Voltage 26VDC Nominal, 30VDC Maximum

NAC End-of-line Resistor 1N4007 Diode

FAULT Relay rating 2A & 30VAC, resistive

Alarm( Auxiliary ) Relay rating 2A & 30VAC, resistive

Master alarm panel Digital & LED display

Slave alarm panel LED display only

9. Max. Alarm current per zone: 300mA

10. Max. number of sounders per zone: 16

11. Max. sounder supply current in fire: 1A/24V

12. Fire fault relay contacts loads: 2A/24V

13. Panel weight without battery: 520g

14: Diameter: 108mm*143mm*40mm

upc code: 782123753055

ean code: 0782123753055

REVIEWS

 Write Review

Related Products

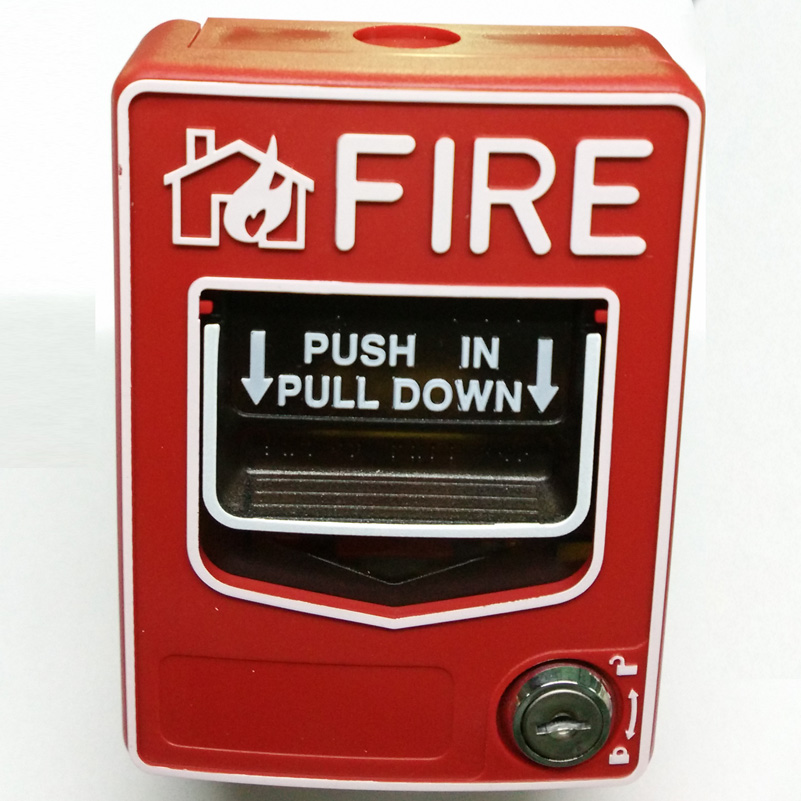

Conventional manual call point pull down station button

Heat Detector Fire Detector Heat sensor

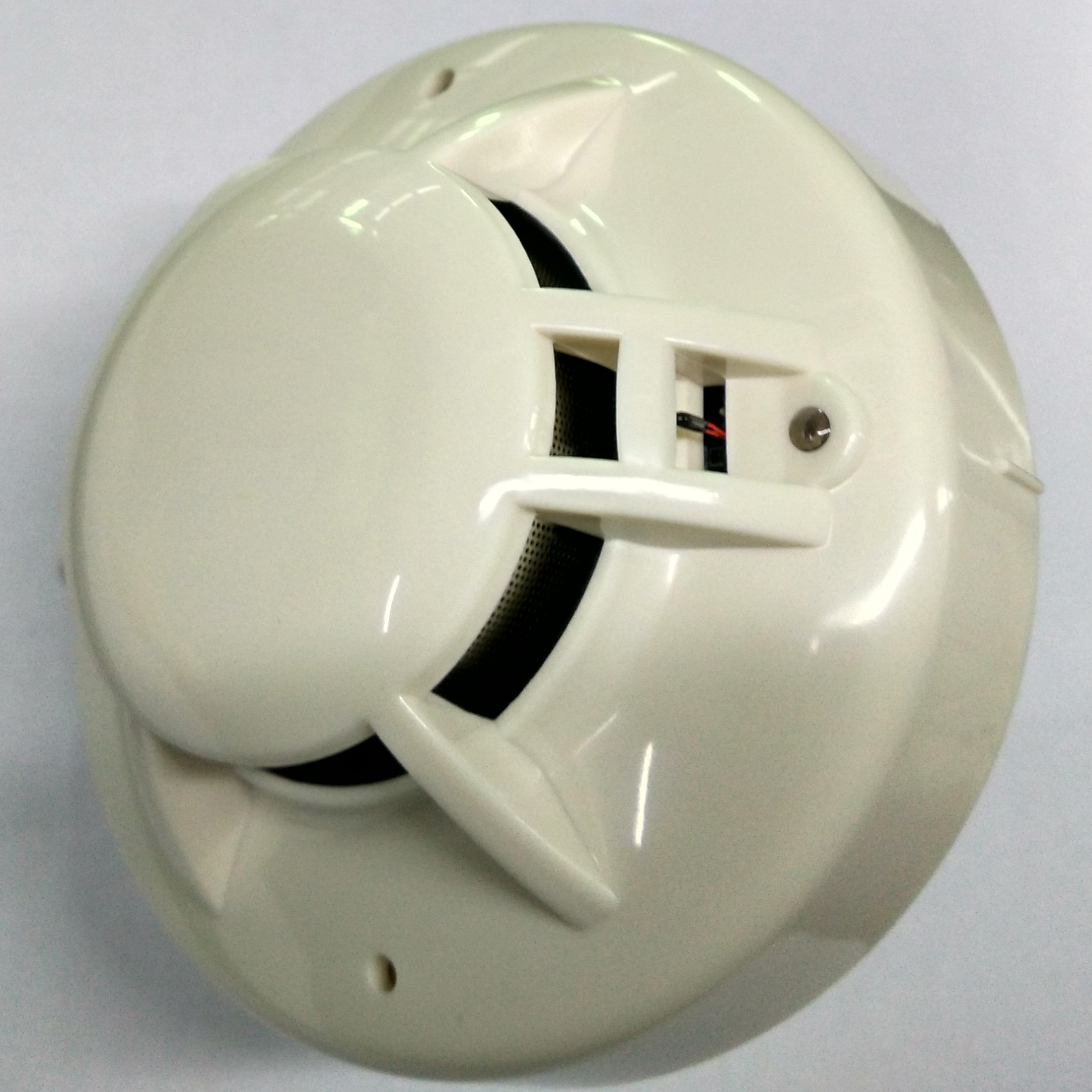

Smoke detector optical fire alarm sensor 2 wire EN54

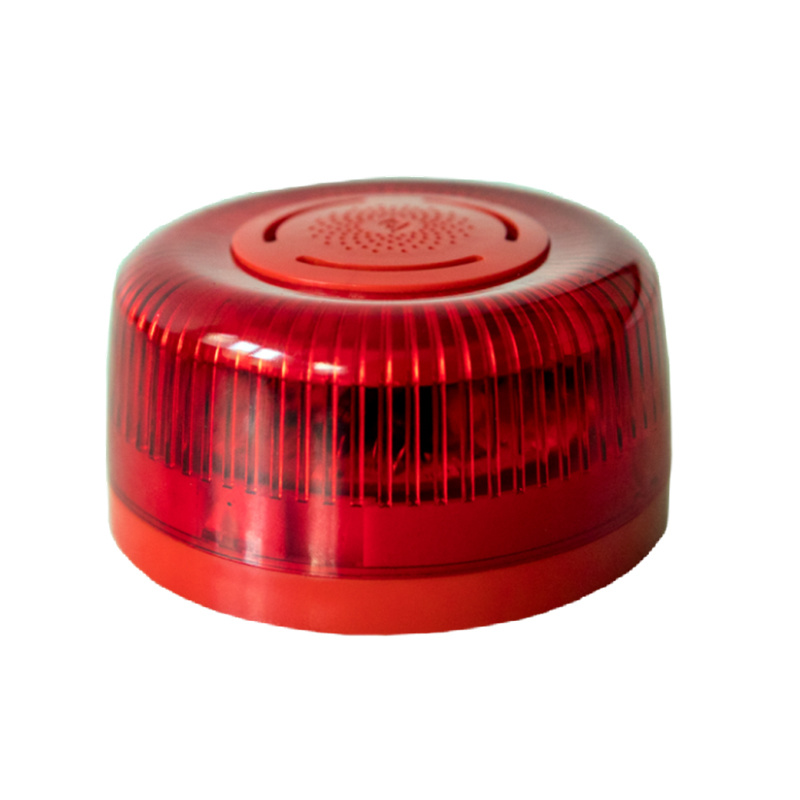

Conventional fire alarm sounder strobe

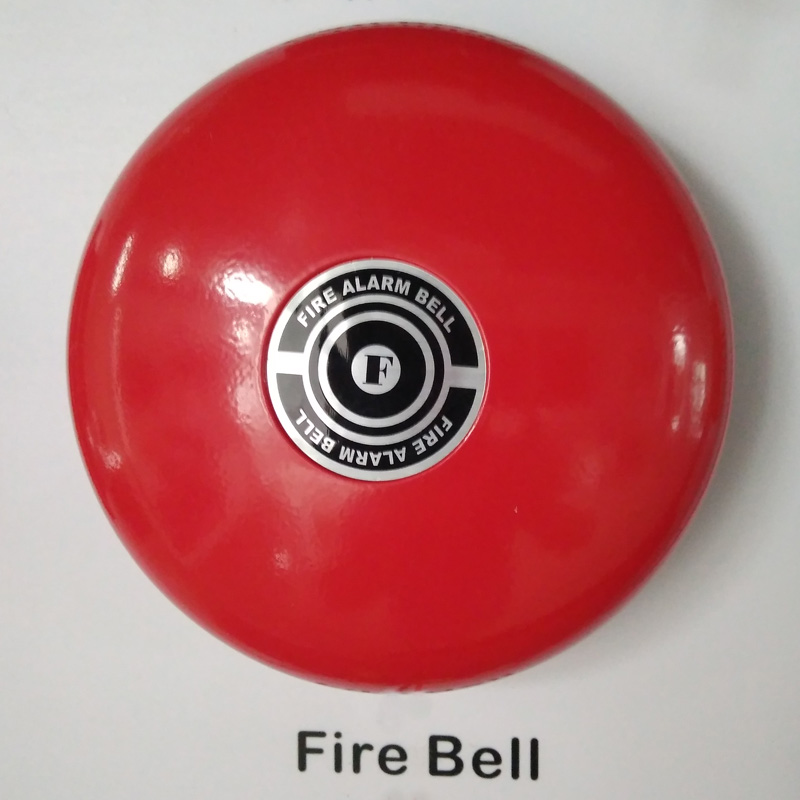

6 Inch 24VDC fire Alarm Siren Electric Bell fire system
