CNC Machine Use Portable EDM with CE and ISO Certificates – On-site electrical discharge machining unit – Precision Repair Equipment

  CNC machine use Portable EDM with CE and ISO certificates
Imitated by Many, Surpassed by None!!!

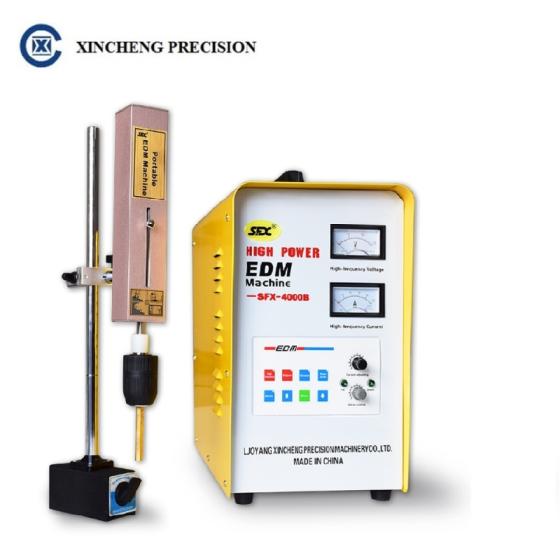

Xincheng's drill EDM machine, adopt the electric erosion principle to fast remove the broken taps, drills, drifts, screws, plug guages ,etc. Non- contact processing, so no force to the work-piece and won't damage to the work piece.

Our Portable EDM machine with  small size and  light weight and are portable for carrying. It's input power can up to 3000W , process on large or heavy work pieces!!! Working head  is separated from the machine, and can rotate in any direction, which is helpful for complex machining.
Item: SFX-4000B
Product name:
Input Voltage:  AC220V/110V±10%
Input Power(W): 300-3000W
Electrode Chuck Diameter(mm):  2-13mm
Working Liquid:  Ordinary tap water
Max Processing Depth of Spindle Servo(mm):  70mm
Max Processing Speed(mm/min):  2mm/min
Gross Weight:  26kg
Adjustable Current: Stepper
Set Depth:  Alarm Automatically at certain depth
Power Box Size(mm):  420*220*370mm
Packing Size(mm):  528*325*460mm
1.Components of portable EDM machine: Power box, operation panel, work head, water pump, magnetic base.
2.Assist devices of portable EDM machine: Power cable, high-frequency cable, control cable, water pipe, magnetic external water supply pipe, electrode chuck,adapter sleeve, etc.
3.Consumptive materials of portable EDM machine: brass tube, brass bar,  hexagon electrode, brass sheet.
We  have passed ISO9001-2008 quality systerm cerificaiton and internaitonal CE certificate.
Every manufacturing process is under strict control. Never miss one machine test before delivery.
Luoyang Xincheng Precision Machinery Co., Ltd was established in February 2004 and currently employs more than 110 people. We have more than 100 sets of machining equipment   and testing equipment, including dozens of CNC equipment, and have long been engaged in the processing of aerospace precision parts and military products.
First of all,our product will have to go through a thorough quality exam process to ensure that our devices won’t have any glitch before delivery.
Secondly,the warranty period is usually around one year and within this time frame,if there are any technical problems,we would repair them for free including the new parts that needed for the repair.
PS:we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely,the damages were done by mishandling the machine.repair.
1. Will your machine could operate on 110V/60HZ input voltage
 Answer: Sure, the standard equipment is for AC110/220V, 50/60HZ input voltage, vary from the
different country requirements.
2. If the chucks rotate when they are machining
Answer: The chuck won't rotate when machine working.
3. What's your delivery method

Answer: The machine will be delivered by internatiol express such as TNT, Fedex, DHL, etc.
4. What about the delivery time
Answer: The machine will be delivered from our factory within 72 hours after the 100% deposit be
checked.
5. What's the payment terms
Answer: We accept T/T, Western Union, Paypal, etc payment terms.
