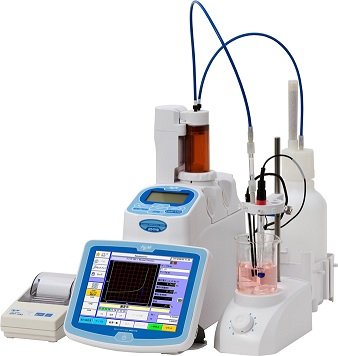

Automatic Potentiometric Titrator [AT-710M]

Large color TFT-LCD with a touch panel (8.4-inch) enables easy key entry.Up to 4 titrators , MKV-710B Volumetric or MKC-710B Coulometric Karl Fischer moisture titrators oradditional AT-710B potentiometric titrators , can be connected and simultaneous measurement is possible.Monitoring temperature during titration ensures safe measurements.

Features

Titrant Information is stored in an IC chip in the burette unit (Smart burette)
Information stored in the electrode cable (Smart electrode)
New burette unit
Up to 4 simultaneous measurements (Simultaneous titration)
Can be connected to MKV-710B Volumetric or MKC-710B Coulometric Karl Fischer moisture Titrator
The main control unit and a titrator are separately located by wireless(Bluetooth(R))
Large color TFT-LCD with a touch panel(8.4-inch)
Two different user levels and permisions
Two different potentials , such as pH/ transmittance , pH/ conductivity or pH/ temperature can be logged simultaneously.
Monitoring temperature during titration ensures safe measurements
Measurement results are converted to PDF and can be stored in a USB flash drive

Applications

Industrial products , Medical goods , Food , Petroleum products , etc.

Specifications

Type

Automatic Potentiometric Titrator

Model

AT-710M

AT-710S

Product configuration

MCU-710M + AT-710 + IDP-100 + Propeller stirrer

MCU-710S + AT-710 + IDP-100 + Propeller stirrer

Detection range

1) Potentiometric	:	-2000mV to +2000mV
2) pH	:	-20.000 to 20.000pH
3) Temp.	:	0 to 100°C

Titration mode

Auto Titration , Auto Intermit , Intermit , Stat , Petroleum Titration , COD

Method

Standard method 120 , Combined method 10 (Max 5 methods can be linked)

Kinds of titration

Potentiometric (acid/base , redox , precipitation) , Photometric , Polarization , Conductivity

Titration form

Full titration (Auto EP detection) , EP Stop , Level Stop , Intersect , EP Stop/Level Stop

Special application

Measurement of electrode potential (pH , potential) , Acid dissociation constant (pKa)

Simultaneous recording of 2-way input potential (e.g. Titer vs. pH+%T , Titer vs. pH+μS) , Learn

Key operation

Touch panel

Displays

1) 8.4-inch color LCD 800 x 600 dots

2) English / Japanese / Mandarin Chinese / Korean / Russian / Spanish / German / French

3) Simultaneous 4-channel display (Can also display Karl Fischer Moisture titrator simultaneously)

3) 1-channel display

Calculation

Concentration of content , statistics data processing (mean , SD and RSD) and automatic averaging of blank and factor value

Data storage

500 samples

GLP conformance

Registration of operator / User group administration
Titrant	:	Reminder of date of factor measurement / Alarm to indicate remaining reagent / Reminder of piston replacement date / Reminder of reagent replacement date / History of factor measurement
Check performance	:	Reminder of scheduled checkdate / Record of check results
Management of electrode	:	Reminder of calibration date / Record of calibration history / Electrode check / History of electrode check
Verification of burette capacity	:	Verification / Record of verification results
Management of conduction time	:	Display of operating time

Burette size

20mL glass burette with brown cover (Standard) Optional burette units : 10mL , 5mL , or 1mL

Burette accuracy

50mL burette(Auto dispenser) +/- 0.5mL 20mL burette +/- 0.02mL ; reproducibility +/- 0.01mL 10mL burette +/- 0.015mL ; reproducibility +/- 0.005mL 5mL burette +/- 0.01mL ; reproducibility +/- 0.003mL 1mL burette +/- 0.005mL ; reproducibility +/- 0.001mL

Preamplifier

1) STD	:	pH (mV) and mV , 2 inputs (Standard)
2) PTA	:	pH (mV) , mV and photometric , 3 inputs
3) POT	:	pH (mV) , mV and polar , 3 inputs
4) CMT	:	pH (mV) , mV and conductivity ,3 inputs (factory setting required)
5) TET	:	pH (mV) 2 ways and mV , inputs (factory setting required)

External I/O

RS-232C port x3	:	for Dot matrix printer/Electronic balance/Data Capture Software (SOFT-CAP)
SS-BUS x1	:	for Multiple sample changer , APB
ELE. x1	:	for Smart electrode
USB x1	:	for USB flash drive , Thermal printer , A4 printer , Keyboard , Barcode reader , Foot switch , USB HUB
TEMP.COMP. x1	:	Input terminal for temperature sensor to correct reagent volume , sensor Pt100 , temperature reading accuracy : +/- 0.5°C (burette 1 only)

LAN ×1

for Personal computer (PC)

Extensibility

Measuring instrument : Automatic Potentiometric Titrator (AT-710) , Karl Fischer Moisture Titrator (MKV-710/MKC-710); Three of these instruments can be added.

Automatic piston burette : Can control max 10 burette drives (Including two built-in burette drives)

Multiple sample changer : CHA-600 , CHA-700

Ambient condition

1) Temperature		:		5 to 35°C
2) Humidity		:		85%RH or below (no condensation)

Power source

AC100 to 240V +/-10% 50/60 Hz

Power consumption

Main unit		:		Approx. 30W
Printer		:		Approx. 7W

Dimensions

Touch panel controller	:	225(W) x 190(D) x 42(H)mm
Titration unit	:	141(W) x 296(D) x 367(H)mm (not incl. tubing)
Printer	:	106(W) x 180(D) x 88(H) mm

Weight

Touch panel controller	:	Approx. 1.5kg
Titration unit	:	Approx. 4.0kg
Printer	:	Approx. 0.4kg

Conformity standard

CE marking EMC : EN61326-1 LVD : EN61010-1 RE Directive Burette unit EBU FCC Part15 SubpartC FCC ID : 2ABSVEBU01
