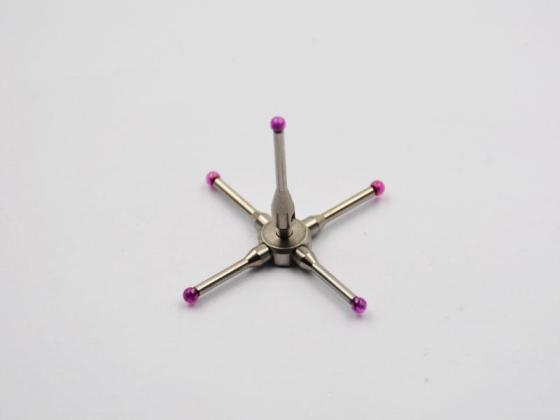

CNC Machine Tool Touch Probe Stylus

Harbin Pioneer M&E Technical Development Co, Ltd was founded by Mr. Baichun Sun in 1995. After several years of development, the company gradually focused its main business on developing CNC touch probe and touch probe. its production, and sales.We developed probes, tool setters, and a variety of probe styluses of the three series of products. As the touch probe in the field of CNC machine tool probe in China, Pioneer has always persisted in independent development pioneer machine and tool and worked hard to reach the world advanced level.

As an important component of the tip probe measurement system, the probe sensor is mainly composed of three parts: the stylus ball, the stylus rod, and the stylus handle. A stylus is the part of the measuring system which makes contact with the component, causing the probe's mechanism to displace. The generated signal enables a measurement to be taken. The feature to be inspected dictates the type and size of the stylus used. The CNC machine touch probe stylus is an important execution element when measuring as a trigger sensor in a machine cnc tool sensor. The stylus range comprises many different types, varying in size and material. We divided the styli into 4 types according to the different styli handles. M2, M3, M4, and M5. It attaches great importance to choose the right stylus for your application. We will help you choose the right design for each inspection need.

Types of CNC machine tool sensors

M2 Screw probe stylus

M2 screw probe stylus has a M2 screw handle. It has many different kinds of stylus with different materials, length and diameter. M2 screw stylus usually used for industry-standard coordinate measuring machine probes.

M3 Screw Probe Stylus

M3 screw probe stylus has a M3 screw handle. It has many different kinds of stylus with different materials, length and diameter. M3 screw stylus usually used for coordinate measuring machine probes and flexible scanning probes.

M4 Screw Probe Stylus

M4 screw probe stylus has a M4 screw handle. It has many different kinds of stylus with different materials, length and diameter. M4 screw stylus usually used for the high-precision probes and the special probes of the company's various series of machine tools.

M5 Screw Probe Stylus

M5 screw probe stylus has a M5 screw handle. It has many different kinds of stylus with different materials, length and diameter. M5 screw stylus usually designed for coordinate measuring machine probes and ultra-high precision scanning probes produced by other manufacturers.
