Oil-water Separator with Patents for the Sale

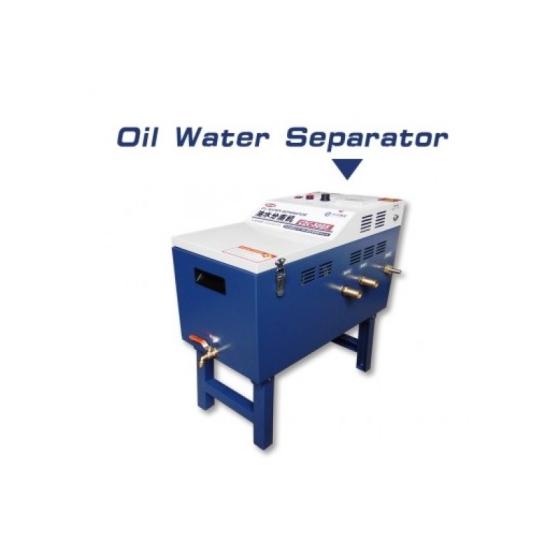

Oil-water Separator with Patents for the Sale CZC-5025 Oil water separator independently researched and developed by our company is applicable to various types of machining centers, CNC machines etc. equipment. The product could separate floating oil from cutting fluid, thus greatly extend the service life of cutting fluid. Meanwhile, the service life span of cutting Tools could be prolonged, ensure machining accuracy, guarantee work environment and staff health.Specification

Overall Dimension: 550*300*355(545)mm

Net Weight: 12.5kg

Gross Weight: 15kg

Timing Range: 1min-168h

Operating Temperature:0℃-65℃

Oil Tank Capacity: 4L

Input Voltage: AC 110V/220V  50/60Hz

Input Power: 25W

Work Period Setting: 16 Periods per Day

Revolving Speed of Pump motor: 0-80rpm(Stepless Adjustable)

Revolving Speed of Oil Scraper: 0-30rpm(Stepless Adjustable)Advantages

1 hour running everyday! Depose once a week! 1kWh each month!

• Independently design the floating inlet position floating oil layer, applicable to adsorb the floating oil in the surface of cutting fluid; Adopt 2-layer filtering system, make sure the filtering thoroughly.

• Small size, light weight, easy to operate.

• Auto control, could set clock within 24 hours to realize the unattended operation in the auto model.

• 16 periods could be set according to the minute, the hour and the week.

• Power of AC220V, directly use when plugged.

• DC motor low consumption, stable and reliable operation.

• No consumables; Purely physical separation methods, no secondary pollution.

• Built-in liquid sensor, alarm when oil is full .

• Oil scraper motor is stepless.

Three Major Technical Upgrades

• New patent oil water separator pump, not easy to damage and block, low maintenance ,no worry about the interference of iron filings.

• Add oil outlet on the bottom, easy to clear.

• Dual-use oil suction inlet,versatile, fixable, floatable, minimum depth of the cutting fluid is 6cm.

Warranty Terms

1,The warranty period is one year and within this time frame, if there are any technical problems, we would repair them for free including the new parts that needed for repair;

2,The warranty period of water pump and motor is three months; wearing parts are not under warranty;

3,The purchasing date is the invoice date (If the customer didn’t have invoice, refer to the purchasing date).

4,If the models have been stopped producing, we only do the function repairing. Please kindly read the operation manual before using.

Warranty Void Cases

1,The fault caused by improper use;

2,The damage caused by improper storage or natural disaster;

3,Without the consent of our company, the customer disassemble, repair and modify the product.
