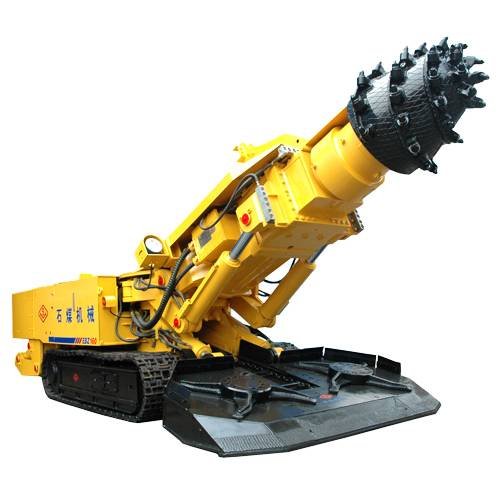

EBZ160Ⅱ Road Header is a kind of jib armed, lengthwise direction tunneling machine with an integrated functions of cutting, loading and traveling, good traveling ability, small ground pressure ratio, the boom is with double cylinders, suitable for a coal or half coal tunneling.
■ Electric and hydraulic driving, compact and strong structure, easy operation, reliability,
■ Water sprayer for dust-suppress; small diameter cutter resulting in bigger force on each tooth.
■ Reasonable layout of the bits making more easily break rock and letting the machine get through the fault without bibration.
■ Swiveling, lifting and lowering of the cutter simultaneously, curve cutting, the art-of –state hydraulic elements.
■ Separate motor for loading and transportation, Optional driving device for the roof bolter.
■ Centralized lubrication system guarantees each parts work reliably and normally.
■ Oil feeding system is added, which makes the oil feeding is easier and keeps the hydraulic system clean.
■ Language signal player and human infrared sensor are added, improving the safety.
Type | EBZ160Ⅱ |
weight（t） | 48 |
Overall Dimension (L×W×H) | 9600×2550×1650 |
Power（kW） | 286 |
Power Pack（kW） | 100 |
Cutting Power (kW) | 160/100 |
Cutter Speed (rpm) | 23/47 |
Telescopic length (mm) | 550 |
Max. Cutting Height （mm） | 4820 |
Max. Cutting Width (mm） | 5240 |
Rock Hardness (MPa) | ≤80 |
Traveling Speed (m/min) | 0~7 |
Width of Track Shoes (mm) | 650 |
Ground Pressure Ration (MPa) | 0.13 |
Load Type | Separate spider |
Voltage（V） | 660/1140 |
Applied Tunnel Gradient | ±18° |
Connecting valve for roof bolter | Yes |
Supporting device | Optional |
Dimensions of the Max. part (L×W×H) mm | 3383×1200×1400 |
Weight of the Max. part (kg) | 5000 |
