Tap Electronics Co., Ltd.

The VICS-2000 has been developed in collaboration with KOGAS (Korean Gas Corporation) as a semi-artifical intelligent robot crawler for visual inspection and collecting foreign materials from gas and o...

Sensors & Transmitters Tap Electronics Co., Ltd. 30 Dec 2025 ( )

Get Your Quote Now : US$150,000

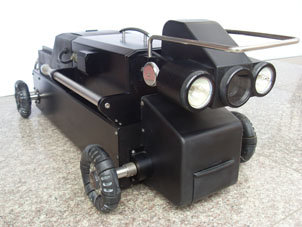

The VICS-2000 has been developed in collaboration with KOGAS (Korean Gas Corporation) as a semi-artifical intelligent robot crawler for visual inspection and collecting foreign materials from gas and oil pipelines (over 20 ~ 30 inch-pipe dia.) It features wireless remote controlled operation with pre-set functions.
Up to 500m dual-trip ability distinguishes VICS-2000 from other robot vehicles, which only travel 100~200m due to cable weight. With this remarkably improved travel distance, VICS-2000 is ideal for gas and oil pipeline inspection with long distant valve joints. During pre-set travel, VICS-2000 records the conditions of pipe inside as well as collects foreign materials like iron-component materials.
Application - Gas and Oil pipeline construction and maintenance- Large and Long Pipeline of the Gas Chemical plant - Electric Power pipeline - Water main pipeline

Specifications

Crawler-Wireless-500M double-trip capacity with pre-set distance-15 ° slope climbing capacity-Maximum 90 ° curving capacity with the complicate structured omni-mini-wheels which allows the Crawler always being located at the center of the pipe inside

Self-Diagnostic and sensor for self-protection Countermeasure program for emergency conditions is included.-Return to zero point if it meet water and obstacles during travelling -Don't start in the condition of the battery shortage-Return to starting point if it analyze for itself the battery shortage in the middle of travelling -Also for another disorders are happened

Video parts-410,000 pixels, high resolution camera -35W halogen lamp 2ea-Video information is automatically recorded to the crawler-mounted 8mm Video Recorder -Distance, Date, Time is displayed on screen

Sampler-material collection-Sampler uniquely designed to collect only for iron pieces which affect the Valve in the complexion of soils, sands and iron pieces.-It is not operated during forwarding but only during retreating"Magnetic Timing Belt" rotates and collects only iron powders or small pieces to deliver to the collection compartment

Battery -24V sealed rechargeable battery -Charger-Battery Level displays the capacity status

* VICS-2000S is patented
