Product Description

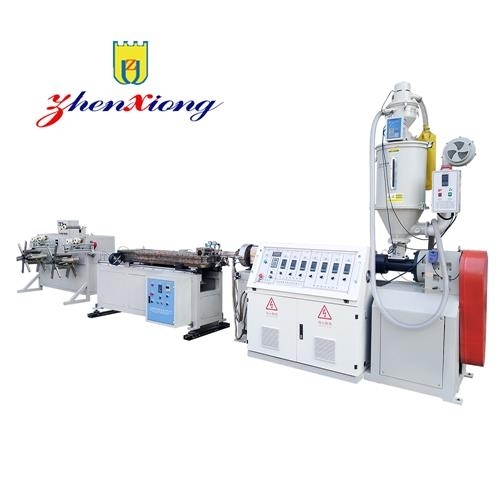

PVC,PP,PE Single-wall Pipe Corrugated Production Line
The single wall corrugated pipe production line can be used for producing PE/PP/PVC small-diameter single wall corrugated pipe, is specially designed by our company after absorbing the advanced technology of overseas, the production efficiency is very high.The corrugator forming unit adopts the closed mould block chain structure, the material of mould block is alloy material which has the excellent the hardness and wear-resisting characteristics, it can ensure the better heat dissipation effect, the thickness uniformity of corrugated pipe and the smooth surface of the pipe. The whole line has the following characteristics,such as running stably, the compact structures, convenience operation, lower friction factor and the more long useful life.
The machine set,matching with DJ65X25 type extruder, wave pipe finshing machine, pipe mould , cooling wind device, counter and others, can continousely extrude all specifications of PVC,PP ,PE ,plastic wave pipe.
The main technical parameter
| Supporting main motor | SJ-65X25 single-screw extruder |
| Forming die specifications | Inner diameter of nominal 16mm 20mm 25mm 32mm 40mm |
| Pair of module | 42 |
| State of piping | single-wall corrugated pipe |
| Perimeter of module | 2133.6mm |
| Pulling speed | 3-10m/min |
| Cooling form of module | Cool wind |
| Cooling form of pipe | Cool wind |
| Power of cool wind | 0.52KW |
| Power of main motor | 15~18.5KW |
| Driving power of auxiliary machine | 2.2KW |
| Overall size(L*W*H) | 7500mmX1600mmX1700mm |
Product Application
The kind of pipe is used for the threading pipe, the drainage pipe of washer, the vacuum cleaner, the specical pipe of prestressed concrete and car industry.
For more detail info,please feel free to visit our website or inquire us at any of your convenience.
1.We are a factory, and the price is favorable.
2.We have strict QC system.
3.We offer a free after-sales service for 1 years.
4.Our engineers are avaliable to service machinery overseas.
5.Our machines have been sold to over 50 countries.
