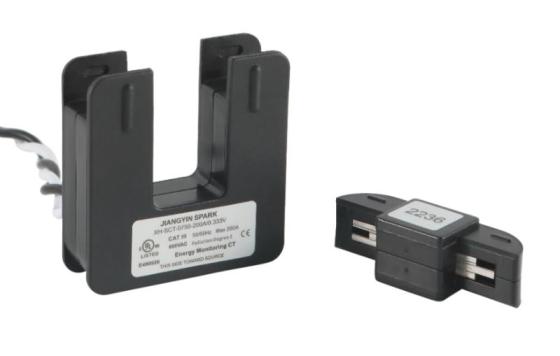

UL2808 SCT-0750 1250 2000 3000 0.333V CT Monitoring Sensor Split Core Current Transformer

Split core Current Transformer SCT XOBA 333mV Secondary  The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondaryFeaturesLow cost.Split core design;safer,easier installation,portable.SpecificationsRated Current 5A to 3000A loads.Rated output: 0.333VacAccuracy:±1% from 5% to 120% of rated currentPhase Angle: less than 2 degrees at 50% of rated currentInsulation Voltage:600VacMaximum Primary Voltage:5400Vac ,Service Entrance CAT IV 250VOperating Temperature:-40oCto 80oC.Frequency Range:50-400HzLeads:4Foot(105cm),UL 1015,Twisted Pair,0.34 mm2(22AWG)UL2808 &CE recognized. RoHS CompliantOutput and leads can be customizedApplicationMeasures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,Residential Systems .
