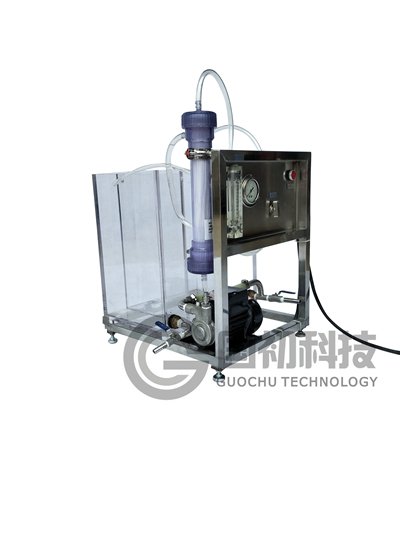

Hollow Ultrafiltration Membrane Experimental Equipment

Hollow ultrafiltration membrane is a hollow fiber by the ultrafiltration membrane, which is ultrafiltration technology in the most mature and advanced technology. Hollow fiber outer diameter is 0.5 to 2.0 mm, while inner diameter is 0.3 to 1.4 mm. Hollow fiber tube wall covered with microporous. The pore size is expressed in terms of the molecular weight of the substance that can be retained, and the molecular weight can be several thousand to several hundred thousand. Raw water in the hollow fiber outside or cavity pressure flow, respectively, constitute the external pressure and internal pressure. Ultrafiltration is a dynamic filtration process, the retained material can be excluded with the concentration of small, not to block the membrane surface, long-term continuous operation. Hollow ultrafiltration membrane experimental equipment is a multi-functional hollow film performance testing, water treatment and material separation equipment. It is suitable for different specifications of the hollow membrane module performance testing. It includes water flux, rejection rate and other performance parameters. At the same time, it also applies to water treatment, a small amount of material filtration and teaching demonstration purposes.Hollow ultrafiltration membrane test equipment features:

• Craft is simple and practical, with beautiful appearance;
• Installation is simple to use and easy to maintain;
• Equipment operation is convenient and stable;
• Stainless steel, corrosion-resistant, and long service life;
• Compact design, small size, and small footprint;
• Filling film area is small, requiring less amount of liquid;
• Adapt to different specifications of hollow ultrafiltration membrane;
• Hollow ultrafiltration membrane components are easy to replace;
• Reliable experimental parameters; and
• Brand products with excellent quality.

Hollow ultrafiltration membrane experimental equipment	Basic performance parameters
	Model	GCM-H-02	GCM-H-200
	Membrane area (m2)	0.2	20
	Maximum working pressure (bar)	3	6
	Adapt to operating temperature (℃)	10-50	10-50
	Adapt to pH range	2-11	2-11
	Total power (kw)	0.2	6.0
	Overall dimensions (m)	0.35*0.25*0.35	2.50×2.50×2.50

 Typical applications:

• Hollow film performance test;
• Tap water, groundwater sterilization in addition to turbid purification;
• Pre-processing of reverse osmosis systems;
• Pre - treatment of seawater desalination;
• Catering industry water purification;
• Domestic drinking water sterilization purification;
• Mineral water aseptic purification;
• Medical water sterilization;
• Separation and purification of blood products;
• Wine Chenghua filter;
• Residential area, residential unit water purification;
• Rural wells in addition to turbid sterilization of alkali;
• Fermentation broth sterilization filter;
• Fermentation of bacteria concentrated use;
• Soy sauce, vinegar and other brewing products to clarify the filter;
• Wine, wine, low degree of clarification of liquor filter turbidity;
• Tea drinks, fruit drinks to clarify the filter concentrate;
• Separation and purification of traditional Chinese medicine extracts;
• High concentration of high viscosity solution;
• City sewage recovery;
• Residential quarters or buildings in the water reuse;
• Machine plus cutting fluid and rolling water and other oil and water separation;
• Oilfield water injection;
• Textile desizing wastewater, emulsion separation;
• Papermaking, electroplating, chemical and other wastewater treatment; and
• Food processing milk purification, meat, fruits and vegetables, cereals, soybeans, monosodium glutamate, alcohol, wine, beverages and other processing wastewater treatment.
